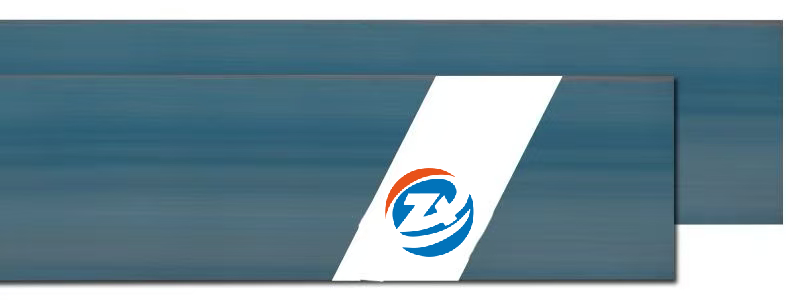

Coating Blades
Due to the permanent technical development in coatedpaper through the last years it has to become more and more necessary to obtain coating blades with a longer life-time.
Key features
1. Hardened , tempered , blue polished and straightened
2. Individual angle to customer specification
3. Straightness tolerance max.0.02mm over 1000 mm
Alloy No.:
SK4（75Cr1)
Description:
ZX@ Coating
Hardness:
HV:1050-1150
Tensile strength:
1800 – 2000 N/mm²
Length:
after your specification
Standard width in mm:
76.2/84/90/100/specialist
Standard thickness:
0.381/0.457/0.508
Surface:
Blue polished
Angle degree:
0°/2°/4°/30°/ Like your specification
Lay:
Tungsten Carbide
Suitable holders
Ready to install with or without punched tabs.
